Flow measurement

@

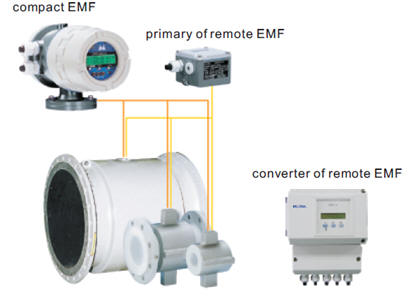

*Electromagnetic flowmeter

*Size: DN10~DN3,800mm

*Accuracy: 0.5%

*Flow velocity: 0.5~10 m/s

*Protection: IP67, IP68 (immersion type)

*Output signal: 4-20mA current output, pulse output

*Excitation current automatic compensation assures the long-term accuracy

*Capacitive empty pipe signal detecting

*Quick response and high accuracy

*Removable EEPROM

@

*Test & diagnosis:

1.self-diagnosis

2.failure record

3.current output test

4.control input / output test

5.emulation test mode, etc

*Zero & span adjustment

*

*Application:

1.Influent & Effluent

2.Dosing system

3.Chiller system

@

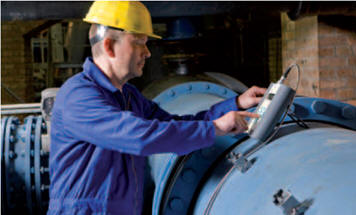

*Ultrasonic flowmeter

*Size: DN6~DN6,500mm
*Accuracy: 1.6%
*Non-invasive measurement using the clamp-on technology for precise bi-directional, highly dynamic flow measurement
*Portable / fix mount installation
*Easy to use flow transmitter with 2 flow channels
*Multiple inputs / outputs
*Integrated data logger with a serial interface
*Automatic loading of calibration data and transducer detection

*Proven clamp-on technology, transducers resistant to dust and humidity

*Water and dust-tight; resistant against oil, liquids and dirt

*QuickFix for fast mounting in difficult conditions

*Application:

1.Water and waste water industry

2.Chemical industry

3.Cooling systems and air conditioners

4.Facility management

@

*Thermal Mass flowmeter

*Direct  mass flow measurement in SCFM, Nm3/h, lb/hr, kg/hr

*Excellent low flow sensitivity

*High turndown ratios

*Ease of installation

*Low pressure drop

*Temperature compensation

*2 line x 16 character display of flow, temperature, and  totalized flow

*NIST traceable calibration

*Application: compressed air, natural gas flow, flare lines, digester/bio gas and other process gas flow measurement

@

@

@

@

@

@

@
@

@

@

@

@

@

@
@

@

@

@

@

@

@
